SpaceX?s Dragon is now through the opening stages of being berthed on the International Space Station (ISS), after the spacecraft was captured by the Space Station Remote Manipulator System (SSRMS) on Friday. The effort to fully install Dragon to the ISS will continue throughout the day, although the major elements of the historic milestone have now been completed.
Dragon?s Big Day:
The first private spacecraft to visit the ISS had already completed the the C2 objectives of the combined C2/C3 mission by early Friday, already a great achievement for what is only Dragon?s second journey into space.
The big test for the C2 portion of the test flight involved a fly under of the ISS to test a number of critical systems that are required for the berthing attempt, as Dragon completed a lap around the Station on what has been described as a racetrack. (Over 300mb of Dragon flyunder Hi Res Images ? the entire image dump from the ISS ? available in L2 ? LINK)
Coming out of far field phasing, Dragon fly just over 10km under the ISS, a distance that allowed for a test of the UHF communication system between the orbital outpost and the commercial spacecraft via the Commercial Orbital Transportation Services (COTS) Ultra High Frequency (UHF) Communication Unit (CUCU).
The test ? also including checkouts of the?Light Detection And Ranging (LIDAR) hardware and GPS ? was a success, marked by the ISS crew managing to command a strobe light on the Dragon, showing they had the ability to communicate with the spacecraft.
?SpaceX and ISS Communication check ? COTS UHF Communications Unit (CUCU) bidirectional communication was established successfully at ~ 10.4 km range during SpaceX Dragon Fly Under demo was successful. The Crew performed Strobe light ON command via Crew Command Panel (CCP),? noted Status Update information via L2 ? (LINK).
?Crew used Laser Instrument Distance and Range (LIDAR) to determine the Dragon range (2780 meters) once Dragon crossed the R-Bar. Crew powered off the Dragon Strobe light via CCP at the end of Fly By demo. Dragon navigational system also functioned successfully.?
The ISS? Space Integrated GPS/Inertial Navigation Unit (SIGI), one of two GPS units required for Dragon?s Relative GPS (RGPS) navigation, also worked without issue, following some late evaluations ahead of the mission to ensure the availability after requirements to Removed & Replace (R&R) one of the units after data showed the old unit was in a degraded state.
?The ISS Space Integrated Global Positioning System/ Inertial Navigation System (SIGI)s were configured for 12-channel mode during the SpaceX Dragon Fly Under Demo,? added the notes. ?The SIGIs regularly tracked 8 or 9 satellites between ISS and Dragon. Both ISS SIGIs are back in 6-channel mode and outputting attitude updates.?

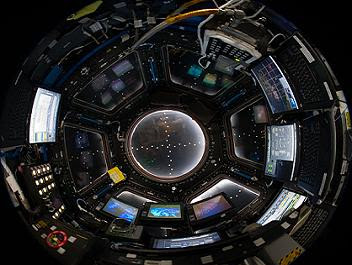

A minor issue relating to the berthing attempt was observed on Thursday, as ISS crewmember Don Petitt called down to note one of the Robotic Work Station (RWS) monitors in the Cupola was failing to display information.
Options existed to move to the Lab?s RWS for the berthing attempt, or replace one of the lab monitors in the Cupola. However, the monitor was fixed via troubleshooting.
?Cupola Robotic Work Station (RWS) Monitor 1 Failure: After ground powered-up the Cupola RWS, crew entered the Cupola and found Monitor 1 to have no video or data, just some horizontal red and white lines near the middle of the screen indicating a sync problem. The crew cycled power via UOP1 in the Cupola and the monitor was recovered,? added the Status update.
?All 3 Cupola monitors have been confirmed functional, and are expected to remain powered through SpX-D capture and berthing. Initial indications are that this is a video sync initialization issue that could only occur at powerup (i.e., should not occur once a monitor is powered and receiving a good sync signal), so no issues are expected for capture or berthing.?
Click here for other Dragon News Articles:?http://www.nasaspaceflight.com/tag/dragon/
The Node 2 Nadir (N2N) Common Berthing Mechanism (CBM) Loss of Communication (LOC) Anomaly was also discussed. However, this was also recovered, deemed to be in an acceptable condition, resulting in the ISS being ?ready to support SpaceX berthing?.
For the next big milestone, berthing,?Dragon was put through a series finite manuevers, mainly to ensure the safety of the orbital outpost ? and its crew ? as the vehicle enters the safety zone surrounding the Station.
First up for Dragon was a repeat of the first part of Flight Day 3?s racetrack profile, as the spacecraft once again catches up to the Station via the Hight Adjustment (HA) and Co-Elliptical (CE) burn, bringing Dragon 2.5 km below ISS. A Go/No-Go was then performed for the HA3/CE2 burn pair bringing Dragon to 1.2 km below ISS.
The HA3/CE3 burn pair, using RGPS and configured with the ISS? own GPS system, were then conducted, followed by the HA4 (Ai) burn, taking Dragon inside the corridor where the crew begins to monitor the spacecraft?s approach. With ?Tally-Ho? on the Dragon for the second time in this mission ? this time with its?strobe light clearly visible -? the spacecraft then into the business end of it?s rendezvous operations.
This resulted in Dragon arriving ? and holding at ? 250 meters from the Station, where checks of Dragon?s LIDAR system were conducted, a key element of hardware that has a heritage of testing via the Space Shuttle Discovery during her STS-133 mission. A retreat was called to test the abort capability, prior to moving forward again to a 235m hold point.
With hold and retreat demos being conducted, yet more Go/No Go polling were conducted by controllers at the Johnson Space Center (JSC) Flight Control Room (FCR) and at SpaceX?s Mission Control in California.
Dragon was then commanded to 200 meters from Station, to allow for better data from the Thermal Imagers on the spacecraft. This was followed by another additional hold point of 150 meters, inside the ?keep out sphere?.
Next, Dragon was given a ?Go? to approach to 30 meters distance from the Station where it will automatically hold. Controllers noted that the Thermal Imagers will continue to be evaluated during the approach.?However, another hold was called ? this time by SpaceX ? in order to reconfigure the LIDAR system to a different mode.
A retreat to 70 meters was then called by SpaceX, who are continuing to take a ?close look? at the LIDAR data.
The problem was deemed to be via ?stray reflections? from the JAXA JEM module?s External Platform (EP) impacting on the LIDAR. The teams decided to narrow the view range of the LIDAR to remove the reflections from the field of view.
This allowed for a ?Go? is given to make the full trip to 30 meters from Station, ahead of Dragon entering the critical phase of approaching the ISS, proceeding from 30m to the Capture Point at 10 meters out, where Dragon automatically held. The ISS? robotic assets ? already translated to the pre-capture position -?were then prepared to move towards the Dragon from the Cupola RWS.
This came after the final Go/No Go poll was performed for Capture, as the crew is informed of the postive decision from the ground.
Upon receiving the ?Go for Capture? call from Houston, the ISS crew armed the SSRMS capture command and begin tracking the vehicle through the camera on the Latching End Effector (LEE) of the SSRMS, noted an overview presentation (L2 ? Link).
With the ISS? thrusters inhibited and Dragon confirmed to be in free drift, the arm?s LEE will be maneuvered over the Grapple Fixture (GF) pin on Dragon to trigger the capture sequence ahead of pre-berthing maneuvers.
With the addition of several holds into the timeline, capture was confirmed later than expected, at 13:56 GMT.
The Dragon, now secured by the SSRMS, was carefully translated to the pre-install set-up position, 3.5 meters away from the Station?s module, allowing the crew to take camcorder footage of the vehicle through the Node 2 windows. This footage will then be downlinked to the ground for engineers to evaluate the condition of the Dragon spacecraft.
The SSRMS was then maneuvered Dragon to the second pre-install position, at a distance of 1.5 meters out. Desats were inhibited prior to the maneuver of the Dragon into Common Berthing Module (CBM) interface to begin the securing of the spacecraft to the ISS.
A ?Go? at this point was marked by all four Ready To Latch (RTL) indicators providing confirmation on the RWS panel.
As has been seen with other arrivals ? and indeed new additions to the Station itself ? Dragon was then put through first stage capture tasks, allowing the SSRMS to go limp, ahead of second stage capture, officially marking Dragon?s berthing with the ISS at 11:02 Central Time, in turn allowing the SSRMS to release and translate to its return position.
While leak checks are conducted between the ISS and Dragon ? required ahead of hatch opening ? the SSRMS was safed, ahead of another job to complete, this time picking up the Special Purpose Dexterous Manipulator (SPDM) ? otherwise known as Dextre ? who will also greet the new member of the ISS resupply family. This opeeration won?t be conducted today due being two hours down on the timeline.
The plan involving Dextre relates to performing a survey of the Dragon trunk using SPDM at the end of the SSRMS, after the big arm retrieves its Canadian cousin from the Mobile Base System at Work Station 5 (WS5).
Dragon?s trunk will be surveyed using Dextre?s own LEE and Camera Light Pan Tilt Assembly (CLPAs), under the control of MCC-Houston. This task will allow for teams on the ground to assess viewing and lighting conditions to aid in operations planning for future trunk cargo extraction/insertion operations that will play a resupply role during future missions.
Once the survey has been completed, the SSRMS will return Dextre to the MBS, which will then carry the robot back to Work Station 2 (WS2).
This article will be updated throughout the major events of Flight Day 4.
(Images: NASA, CSA, SpaceX and via L2?s SpaceX Dragon C2+ Mission Special Section ? Containing presentations, videos, images,?interactive high level updates and more,?with additional images via NASA, SpaceX).?
(Click here: http://www.nasaspaceflight.com/l2/?- to view how you can support NSF and access the best space flight content on the entire internet).
Tags: Dextre, Dragon, ISS, SpaceX, SSRMS
